Air Compressor

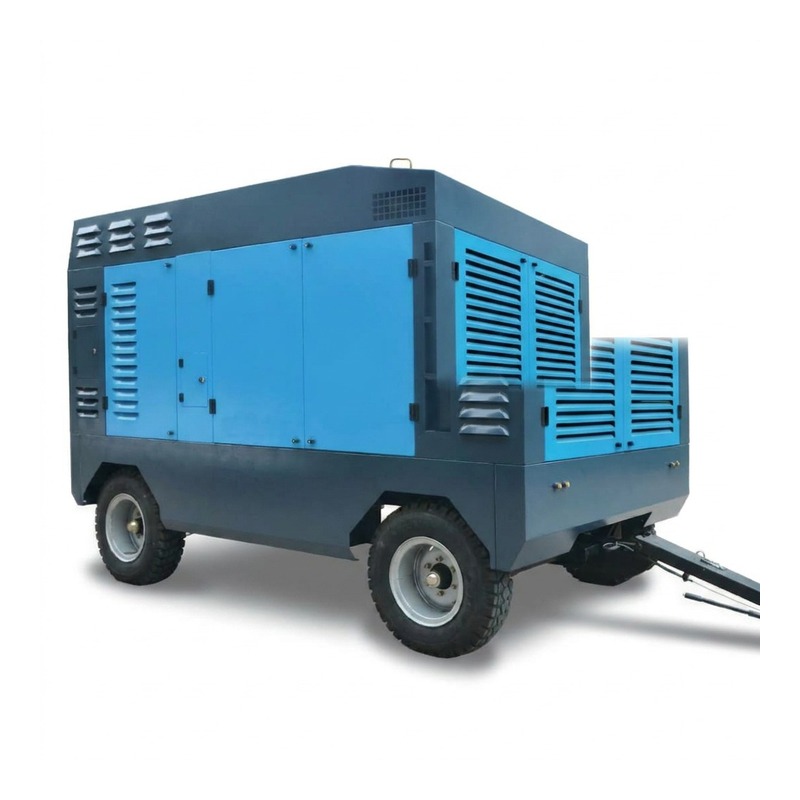

TDS-C850 Air Compressor
The TDS-C850 high-capacity diesel screw air compressor is designed for large-diameter DTH drilling, deep water well projects and mining blast-hole drilling. Delivers consistent high-pressure airflow in harsh environments.
Key Features
- ✓ High-capacity output for large-bore DTH work
- ✓ Turbocharged diesel engine with efficient fuel use
- ✓ Skid or trailer mount options available
- ✓ Electronic automatic control panel
- ✓ Suitable for high-altitude and hot climate conditions
Technical Specifications
| Free Air Delivery | 8.5 m³/min |
| Working Pressure | 1.2 MPa (12 bar) |
| Drive Type | Diesel Engine |
| Engine Power | ≈ 90 kW |
| Cooling System | Air Cooled |
| Dimensions (L×W×H) | 3000 × 1600 × 1800 mm |
| Weight | ≈ 2,200 kg |
| Application | Deep DTH drilling, mining, blast-hole |
Need This Product for Your Project?
Tell us your drilling application, formation type and required quantity. Our team will respond within 24 hours.
