Air Compressor

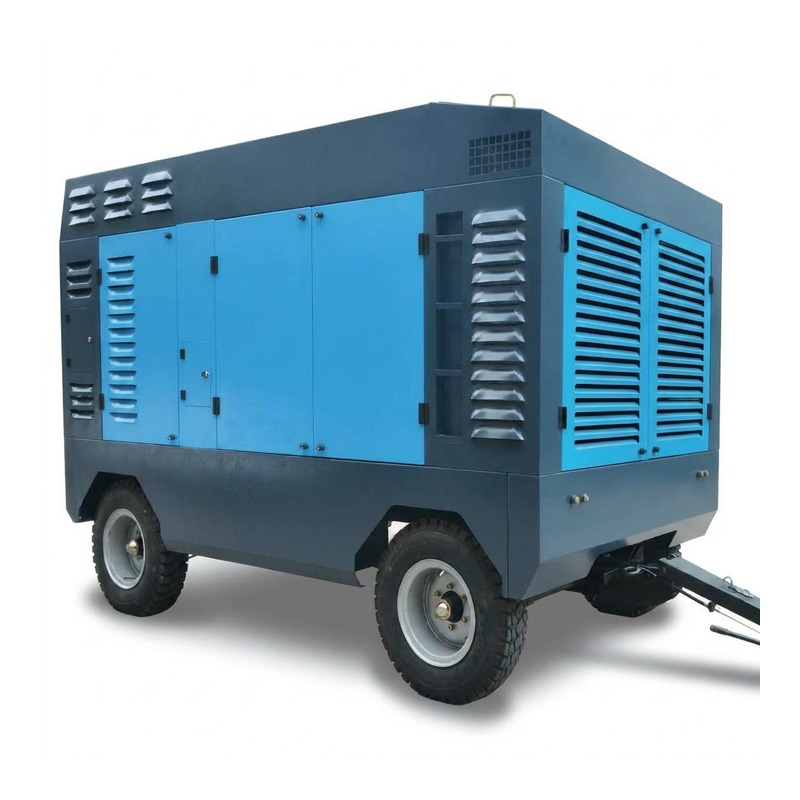

TDS-C650 Air Compressor
The TDS-C650 portable screw air compressor provides higher flow capacity for medium-depth DTH drilling and simultaneous multi-hammer operations. Built for reliability in remote geological exploration sites.
Key Features
- ✓ Higher flow output for multi-tool operations
- ✓ Diesel rotary screw compression system
- ✓ Heavy-duty frame with tow hitch
- ✓ Integrated aftercooler for dry air delivery
- ✓ Easy-access service panels for maintenance
Technical Specifications
| Free Air Delivery | 6.5 m³/min |
| Working Pressure | 1.0 MPa (10 bar) |
| Drive Type | Diesel Engine |
| Engine Power | ≈ 64 kW |
| Cooling System | Air Cooled |
| Dimensions (L×W×H) | 2700 × 1450 × 1650 mm |
| Weight | ≈ 1,650 kg |
| Application | DTH drilling, geological exploration |
Need This Product for Your Project?
Tell us your drilling application, formation type and required quantity. Our team will respond within 24 hours.
