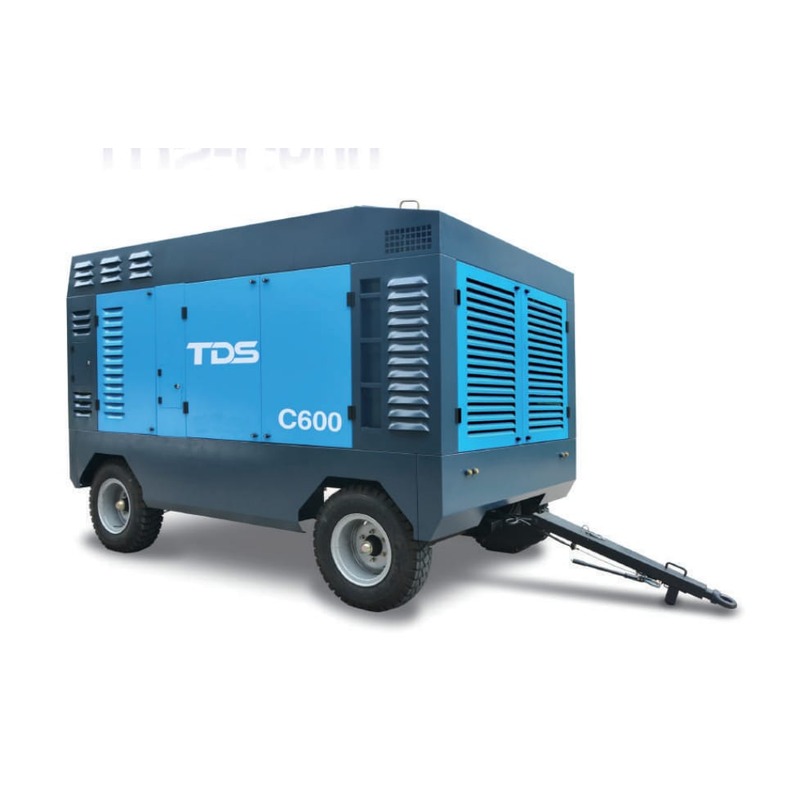

TDS-C600 Air Compressor
The TDS-C600 is a portable diesel-driven screw air compressor designed for DTH hammer drilling, water well drilling and rock drilling operations. It delivers stable high-pressure airflow in demanding field conditions.
Key Features
- ✓ Diesel-powered rotary screw compressor
- ✓ High-pressure output suitable for DTH drilling
- ✓ Compact trailer-mounted design for field mobility
- ✓ Low noise operation with reinforced casing
- ✓ Compatible with standard DTH hammer systems
Technical Specifications
| Free Air Delivery | 6 m³/min |
| Working Pressure | 1.0 MPa (10 bar) |
| Drive Type | Diesel Engine |
| Engine Power | ≈ 55 kW |
| Cooling System | Air Cooled |
| Dimensions (L×W×H) | 2600 × 1400 × 1600 mm |
| Weight | ≈ 1,500 kg |
| Application | DTH drilling, water well, rock drill |
